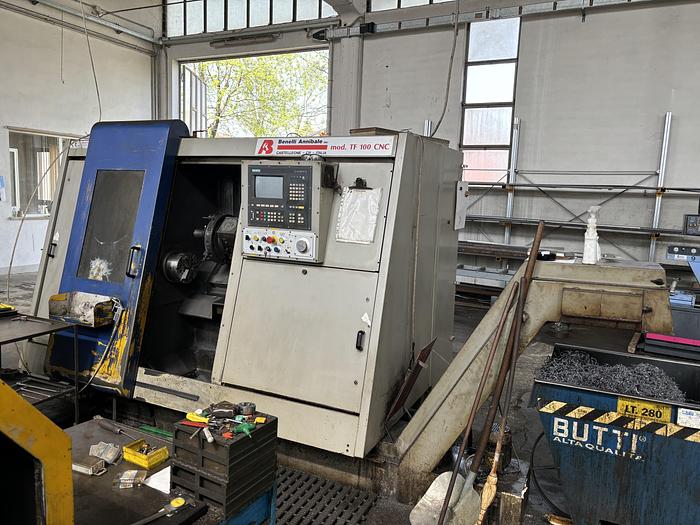

BENELLI MOD. TF 100 2-AXIS CNC LATHE

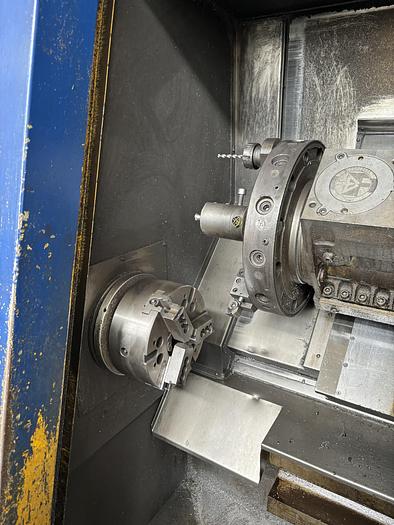

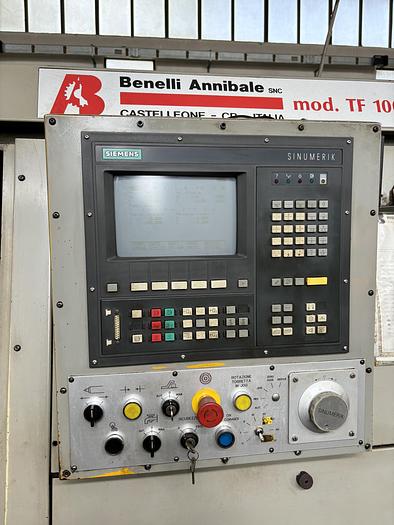

GENERAL DATA: SIEMENS 810 T NUMERICAL CONTROL WORKING AREA: -MAX ROTATING DIAMETER ON THE BED MM.480 -MAX ROTATING DIAMETER ON THE CARRIAGE MM.400 -MAX TURNING DIAMETER (WITH MILLED DISC) MM.260 -TURNING LENGTH BETWEEN CENTERS MM.520 SPINDLE: -ASA 6” SPINDLE NOSE -SPINDLE HOLE MM.62 -BAR PASSAGE WITH TIE ROD MM.52 -INTERNAL DIAMETER OF THE FRONT BEARING MM.110 -SELF-CENTERING DIAMETER MM.210 -MAX SPINDLE SPEED RPM 3500 -SPINDLE MOTOR POWER (S1/S3) KW 15/18.5 AXES: -MAX X AXIS STROKE MM.160 -MAX Z AXIS STROKE MM.520 TURRET: -DUPLOMATIC SM16-P TURRET / 12 POSITIONS -N. STATIONS 12 TAILSTOCK: -HYDRAULIC TAILSTOCK MANUAL POSITIONING -QUILLE STROKE MM.140 -QUILLE DIAMETER MM.63 GENERAL DATA: -TOTAL WEIGHT KG. 5200 -TOTAL POWER KW 20 -SUPPLY VOLTAGE VAC/HZ 400/50
